Con Rod Failure on MAN B&W 2 Stroke





A Con Rod on this engine failed at the change of section due to a flaw in the material. The result was a wrecked engine.

The following sequence of photos show the damage followed by the removal of the engine from the ship.





The Broken con rod



Close up of Fatigue failure

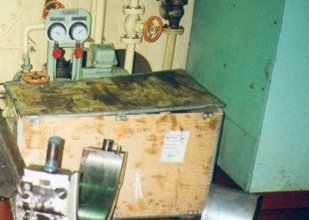

Crosshead

Smashed Piston Crown

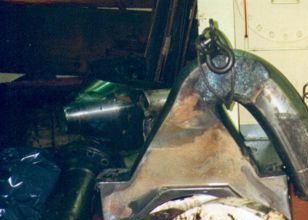

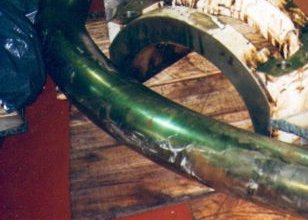

Con Rod and Piston Rod Doing Banana Impressions

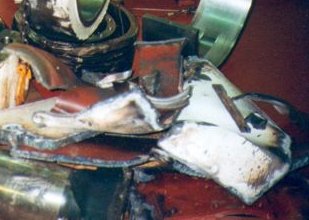

Smashed Diaphragm Plate



Attaching Slings

Lifting Entablature



Lifting Out Con Rods

Attaching Slings to Frame Prior to Lifting



Attaching Slings to Crankshaft

Lifting Crankshaft



Above and Right: Bedplate Being Lifted From Ship
